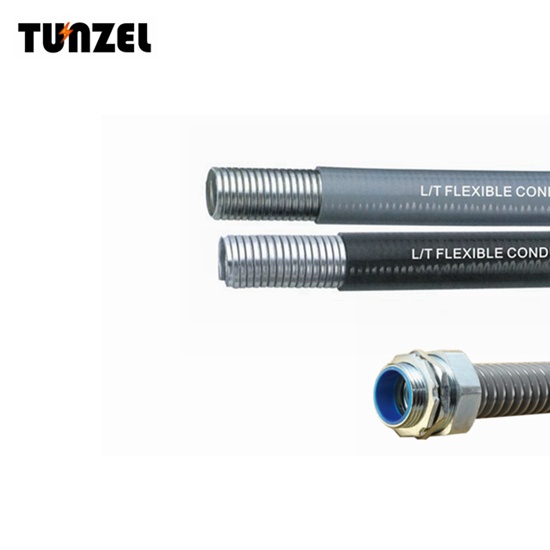

Galvanized steel core corrosion resistant Liquid tigit flexible steel conduit
|
LIQUID TIGHT FLEXIBLE METAL CONDUIT |
|||||
|
(Galvanized steel core , corrosion reistant) |
|||||
|
SIZE |
Inside Diameter(mm) |
Outside Diameter(mm) |
Coil Packing(m) |
||
|
Min |
Max |
Min |
Max |
||
|
3/8” |
12.30 |
12.80 |
15.70 |
18.00 |
30,50,100 |
|
1/2” |
15.80 |
16.30 |
20.80 |
21.30 |
30,50,100 |
|
3/4” |
20.70 |
21.20 |
26.20 |
26.70 |
30,50,100 |
|
1” |
26.20 |
26.80 |
32.70 |
33.40 |
30,50 |
|
1-1/4” |
34.80 |
35.40 |
41.40 |
42.20 |
15,25 |
|
1-1/2” |
40.10 |
40.60 |
47.40 |
48.30 |
15,25 |
|
2” |
51.30 |
51.90 |
59.40 |
60.30 |
15,25 |
|
2-1/2” |
60.00 |
63.60 |
72.10 |
73.00 |
7.5,15 |
|
3” |
78.00 |
78.80 |
87.90 |
88.90 |
7.5 |
|
4” |
101.60 |
102.60 |
113.2 |
114.30 |
7.5 |
|
Galvanized steel core corrosion resistant Liquid tigit flexible steel conduit |
|
Material: (inner layer)Adopting galvanized steel band with special insulation treatment.(outer layer)Adopting PVC raw material(anti-UV, anti-aging) Color: Black or Grey. |
|
Working temperature:-10 °c ~+80°c. |
|
The flexible pipes have extremely good waterproof, insulating and pull resistance. |
|
The flexible pipes have extremely good waterproof, insulating and pull resistance. |

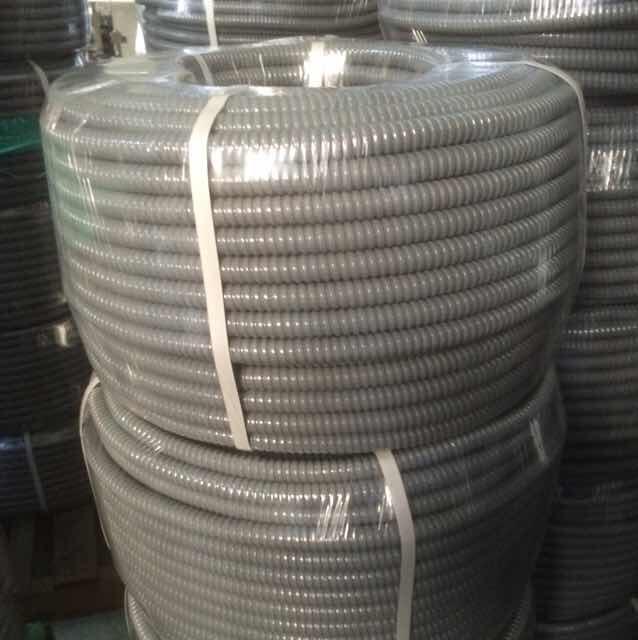

Detailed Images
